Why are screws critical in engineering and manufacturing?

• What is a Screw, and why is it important?

• Deep dive into Socket Set Screw

• Deep dive into Hexagon Socket Screw

• Why choose (our) Screw products + FAQs + brand/Contact

A screw is a type of fastener that typically has threads wrapped around a shaft, enabling it to convert rotational motion into linear force. Unlike bolts (which generally require a nut), many screws are used without a nut: they are driven directly into a threaded hole or into a material.

Why are screws critical in engineering and manufacturing?

• They provide reliable clamping force with precise control.

• They allow disassembly and reassembly, which is vital for maintenance, repair, and modular design.

• In many applications (machinery, electronics, vehicles), screws are small but crucial components: failure in a single screw can lead to system failure.

What types of screws exist, and where do “set screws” and “socket screws” fit in?

Screws come in many varieties: wood screws, machine screws, sheet-metal screws, self-tapping screws, etc. Among them:

• Set screws (or grub screws): headless or flush screws used to secure one part against another (for example, locking a gear on a shaft) without protruding features.

• Socket screws: these have internal drive recesses (hex, etc.) and are driven by matching tools, such as hex keys or Allen wrenches.

• Our focus is on socket set screws and hexagon socket screws, particularly as high-precision fasteners used in industrial, mechanical, and automation contexts.

In subsequent sections, we explore these two subtypes in depth.

Socket Set Screw — In-Depth

How is a Socket Set Screw defined, and what makes it distinct?

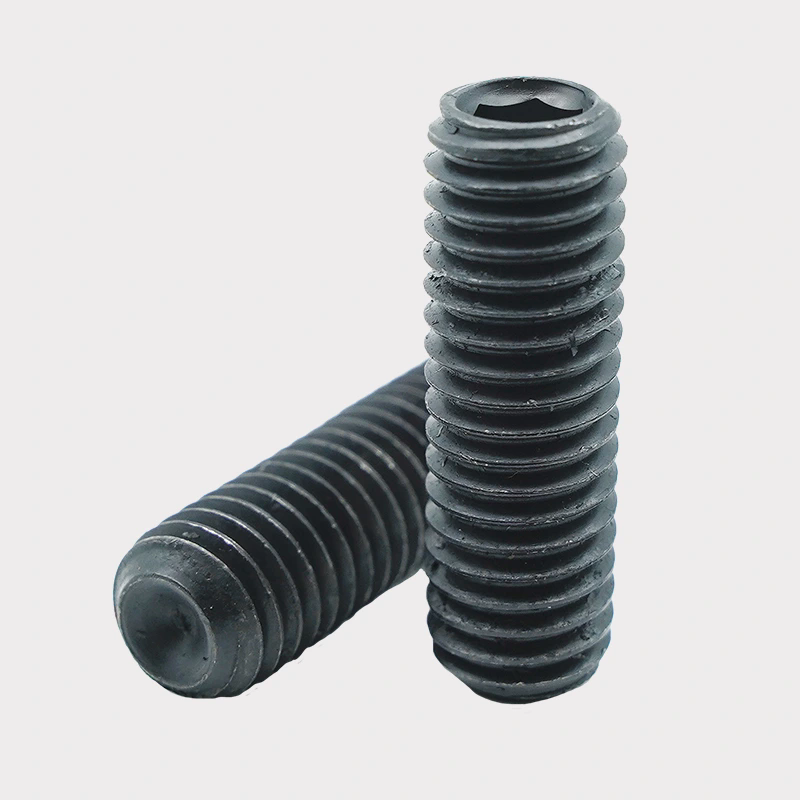

A Socket Set Screw is a screw without a conventional head (or with minimal protrusion) that uses an internal socket (typically hexagonal) for driving. It is fully or mostly threaded along its length, and the tip is used to press against or clamp another part (shaft, gear, collar). It's often flush or recessed, so it doesn’t interfere with surrounding parts.

Why choose a Socket Set Screw in applications?

• For compactness: no external head means less interference in tight spaces.

• Precise force application: the screw tip can press exactly where needed (shaft flat, detent, or groove).

• Clean appearance and flush installation: useful in assemblies where protruding heads are undesirable.

• High torque transmission when properly tightened, especially with hardened tips or knurled points.

What are the design details, parameters, and tip types?

Below is a table summarizing common parameters:

Tip types and their behavior:

• Cup point: Most common; slight concave shape allows a bit of “bite” into a mating surface, balancing torque and reusability.

• Flat point: Presses flat against a surface; ideal when scratching or marring the surface is unacceptable.

• Cone point: Creates a more concentrated force at one spot – useful for locating against detents or dimples.

• Dog (or extended) point: Projects further, useful for alignment or fitting into a hole.

• Knurled cup point: Has serrations to resist loosening under vibration; often single-use because the serrations deform.

How to choose and install a Socket Set Screw?

• Choose proper tip type depending on mating surface.

• Ensure correct torque — over-torquing can damage threads or deform shaft; under-torquing leads to slipping.

• If the shaft is soft, consider imparting a detent (flat or dimple) so the screw tip can bite in.

• Use appropriate driving tool—a well-fitting hex key to avoid stripping.

• Locking measures: in vibration-prone environments, use locking compounds or knurled tips.

Hexagon Socket Screw — In-Depth

How is a Hexagon Socket Screw defined, and how does it differ from a set screw?

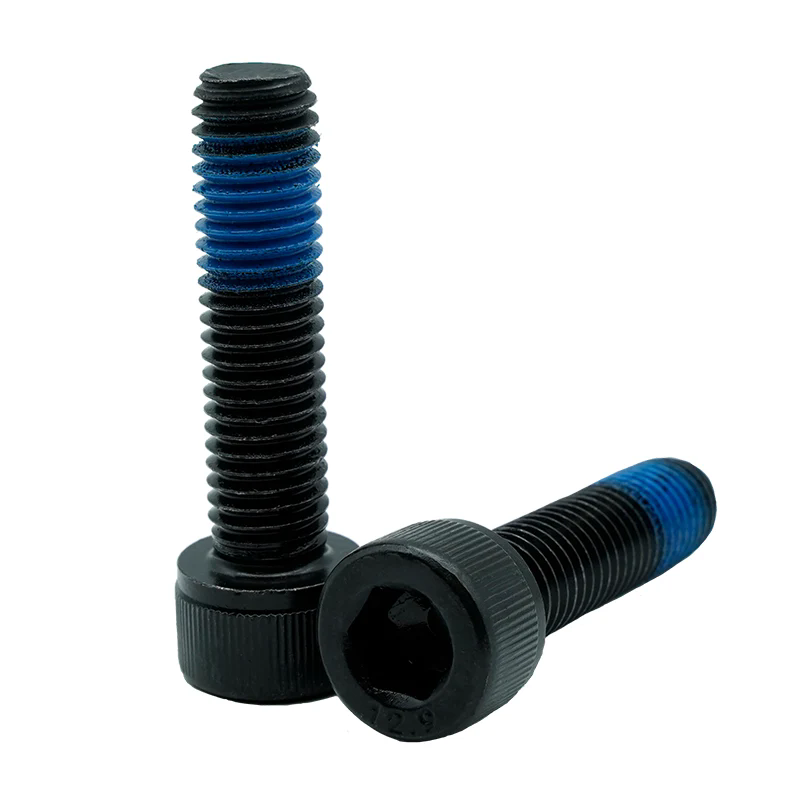

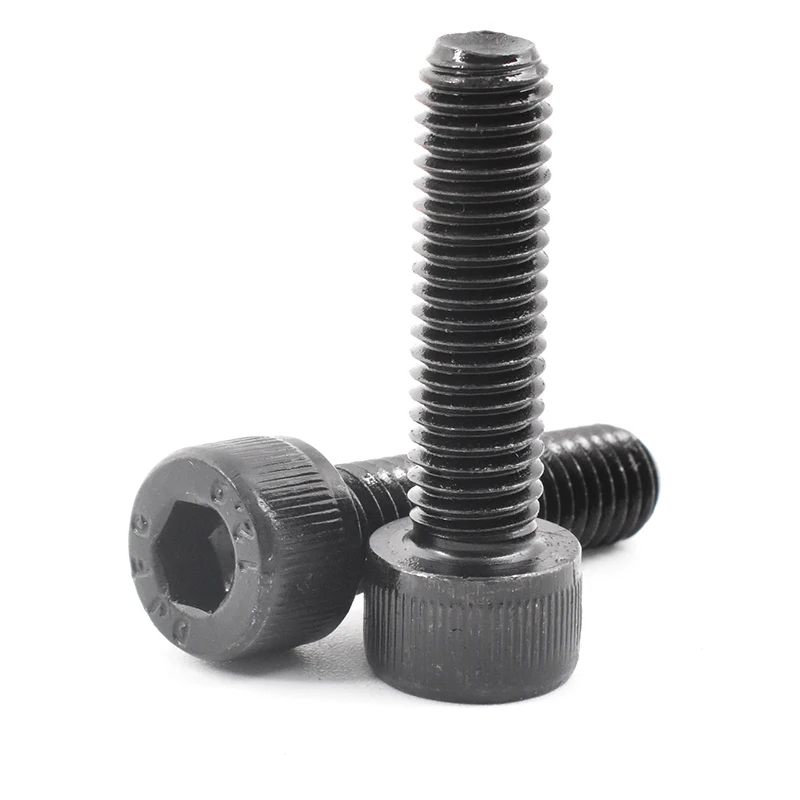

A Hexagon Socket Screw (also called hex socket head screw or internal-hex screw) typically has a head, but the drive mechanism is a recessed hex (Allen) socket. Unlike a set screw, it often protrudes and is not purely headless. The head can be of various types (cylindrical cap, flat countersunk, button head, etc.).

It provides high torque with internal drive and is widely used in machine assemblies, clamping, structural joins, etc.

Why choose a Hexagon Socket Screw?

• Better torque control via internal hex drive.

• Cleaner aesthetics and compact head design.

• Wide standardization (ISO, DIN, ANSI) ensures interchangeability.

• Ease of disassembly, reusability.

• Ideal for recessed or tight spaces because tools can reach internal drive.

What are the parameters and standards for Hexagon Socket Screws?

Below is a comparative table:

For example, a hexagon socket set screw with cup point per ISO 4029 (ex-DIN 916) often uses stainless steel A2, M6 × 16 mm.Another example: Ace’s Hexagon Socket Set Screw J1TB01106008.

How to specify and use Hexagon Socket Screws?

1. Select head type according to space constraints (e.g. countersunk if flush).

2. Select material/strength to match application load.

3. Choose correct internal drive size to balance tool strength and space.

4. Torque specification: follow standard tables to avoid over-stressing.

5. Preload and locking: use washers or locking adhesives if needed in vibration environments.

Why Choose Our Screw Products?

Why our Screws stand out

• Precision manufacturing: tight tolerances, smooth recesses.

• Varied tip options: we tailor set screws and socket screws to match application needs.

• High-quality materials: alloy steels, stainless, with surface treatments against corrosion.

• Strict quality control and testing.

• Flexibility in custom sizes, lengths, and finishes.

• Strong technical support and application advice.

Below is a summary of typical product offerings (example specifications):

We support custom orders — you send a drawing, we produce to spec, with material certificates and inspection reports.

Common Questions About Screw / Set Screw / Socket Screw

Q1: What is the difference between a set screw and a regular screw?
A1: A set screw is designed to secure one component to another (e.g. locking a collar on a shaft) and is often headless or flush; regular screws often protrude and may require nuts or mating parts.

Q2: How do I choose the tip (point) type of a socket set screw?
A2: Choose based on mating surface and desired behavior: cup point for general purpose, flat point when surface must remain unmarred, cone point for precise alignment, knurled for vibration resistance, and dog point for locating.

Q3: Can I reuse screws with knurled/ serrated tips?
A3: No, knurled or serrated tips tend to deform when installed and removed; reuse may compromise the locking action. It’s safer to use a new one for reliable performance.

Natural mention of brand and call-to-action

At JINSIXI, we pride ourselves on delivering high-precision, reliable screw products (socket set screws, hexagon socket screws, and more) for industrial and mechanical applications. Whether you need stock items or custom solutions, our team is ready to assist. Contact us to discuss your project requirements or request quotes — Contact us.
